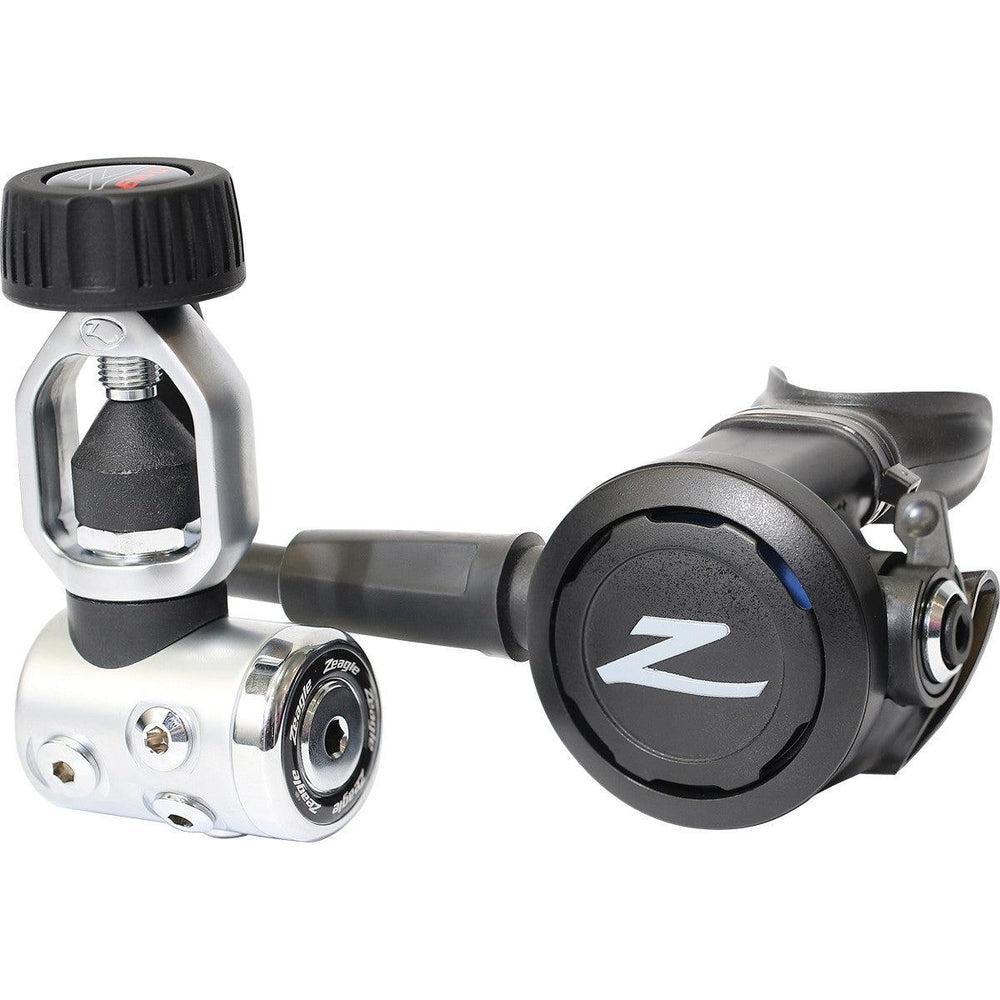

Zeagle Envoy II 1st Stage Yoke with Envoy 2nd Stage

Name: Zeagle Envoy II 1st Stage Yoke with Envoy 2nd Stage
Brand: Zeagle
SKU: 350-3310
Price: 409.95 USD
Availability: InStock

Zeagle | SKU: 350-3310

Write a review

| Ask a question

$409.95

Shipping calculated at checkout.

Type

YOKE DIN

Product variants

Description

Tremendous value. Uncompromising performance.

The Envoy II is an incredible value, meeting or exceeding the performance of regulators that cost much more.

Envoy II is an economical regulator that doesn’t compromise on performance or reliability. Its lightweight first stage, with balanced diaphragm, is available in DIN or Yoke, and its 2nd stage has a downstream valve and Dive/Pre-dive Venturi control (with 30? hose length).

Light and comfortable, the Envoy II Second Stage is compact enough to use as a backup but robust enough to rely on as your primary go-to regulator.

Features

ENVOY II FIRST STAGE FEATURES:

An economical, yet top-performing regulator

High Performance Porting

Conical Precision HP valve

Balanced Diaphragm

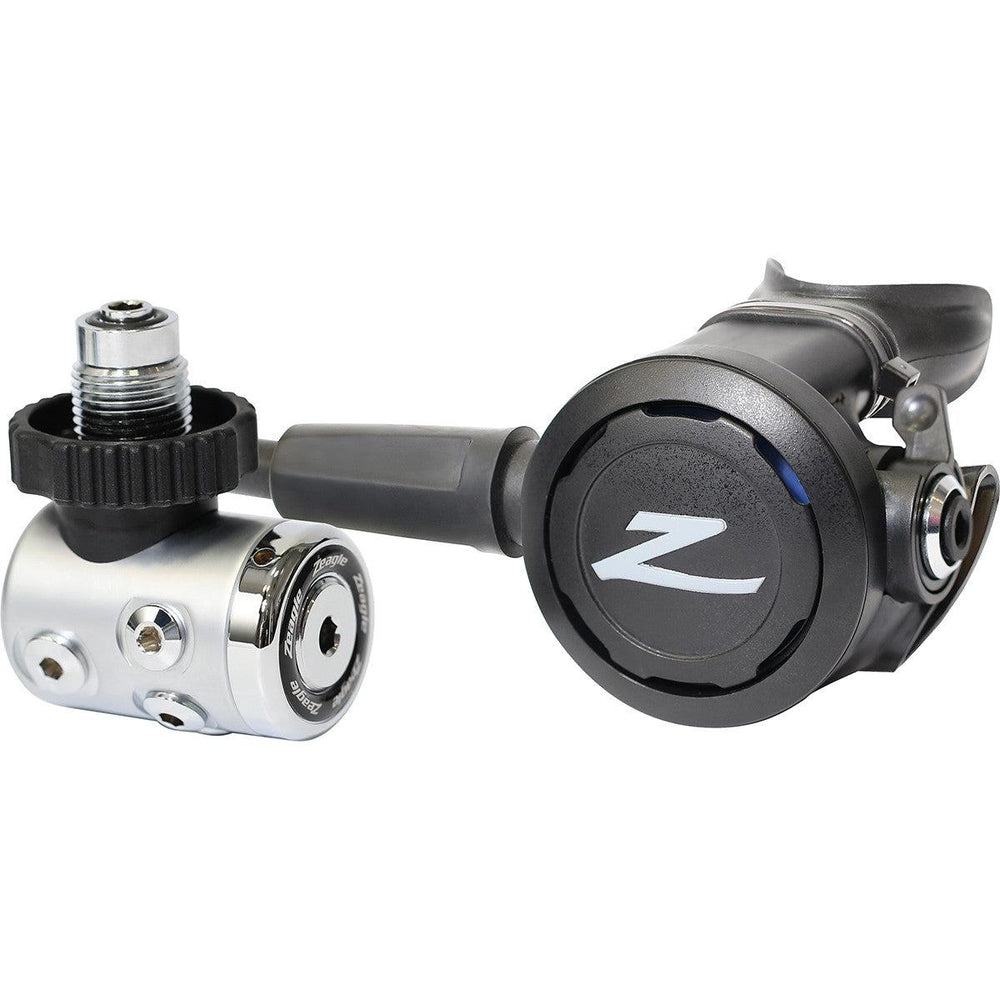

Yoke or DIN inlet available

5 Low Pressure Ports (3/8”-24 UNF)

2 High Pressure Ports (7/16”-20 UNF)

Weight 1.88 lbs (.89 kg)

Intermediate Pressure: 135-150 psi (9-10 bar)

ENVOY II SECOND STAGE FEATURES:

Downstream valve

Venturi lever gives you free-flowing control and helps deliver smooth, reliable breathing

Balanced Diaphragm

Weight: .42 lb. (.26 kg) (w/o hose)

Hose Length: 30 in. (.76 m)

First Stage Materials:

Body: Brass

O-Rings: Buna-N

Seat: Advanced Polymer

HP Valve: Stainless Steel

Second Stage Materials:

Cover: Flexible thermoplastic

Case: Thermoplastic

Poppet Seat: Elastomer

O-rings: Buna-N

Diaphragm:

Exhaust Valve: Elastomer

Mouthpiece: Silicone

Specifications
