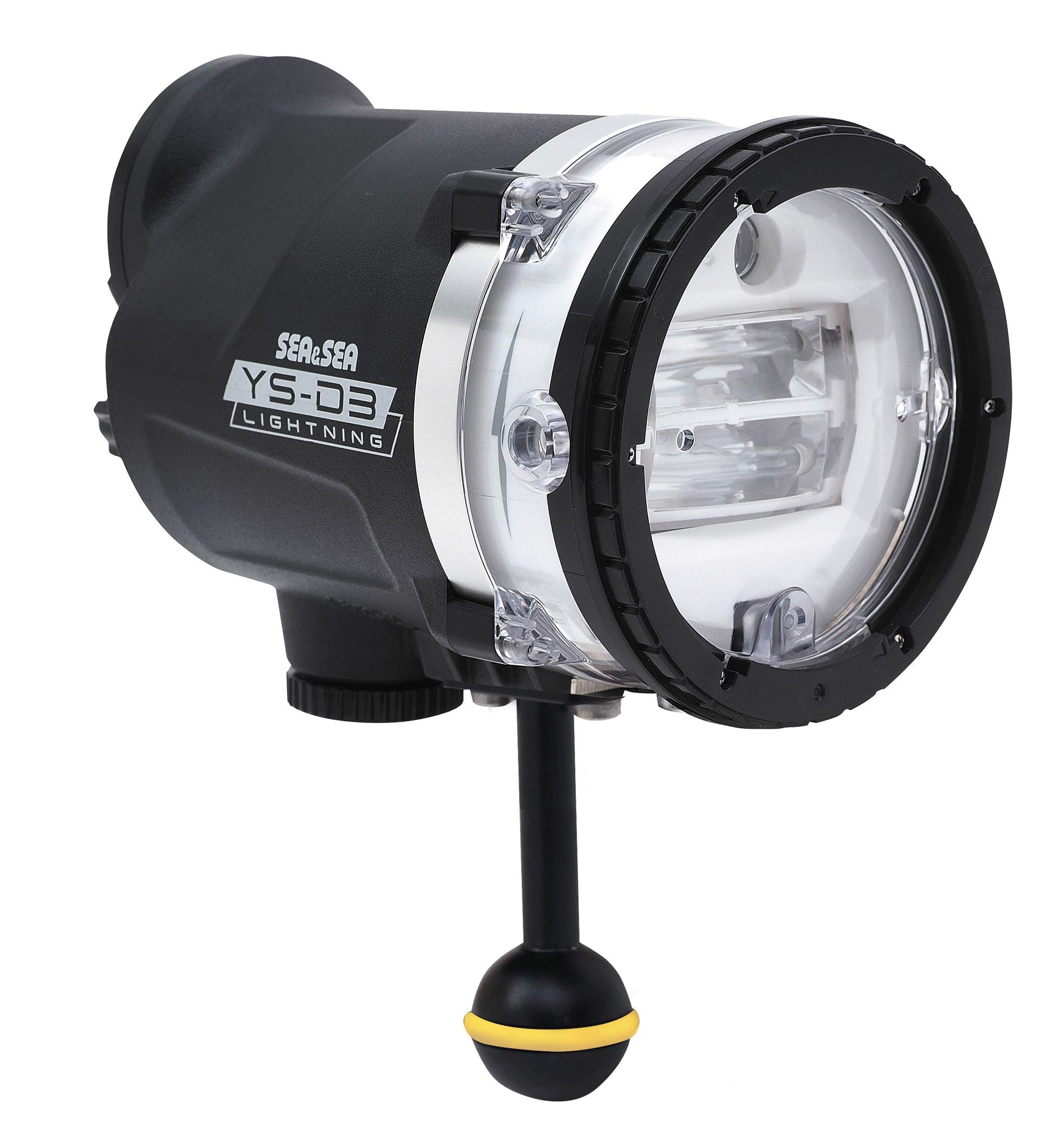

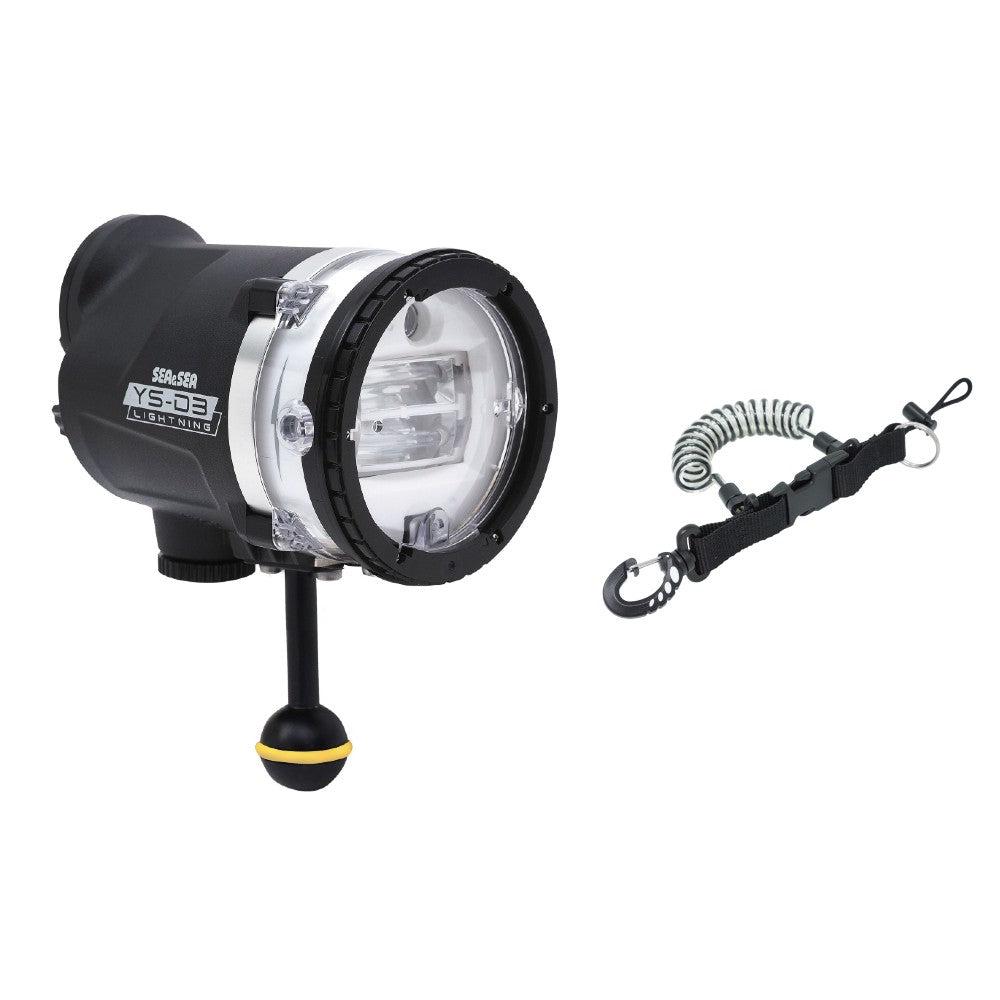

SEA & SEA YS-D3 Lightning (DOES NOT INCLUDE FIBER OPTIC CABLE)
Sea&Sea has now updated its flagship YS-D3 strobe to the YS-D3MKII.
The new updates enhance TTL shooting and third-party optical converter compatibility while still retaining all the great features, such as a 33 Guide Number, wide Beam Angle and broad flash distribution of the original D3
The new MKII model will be a “running change” update, that is, the product number (#03123), will remain the same.

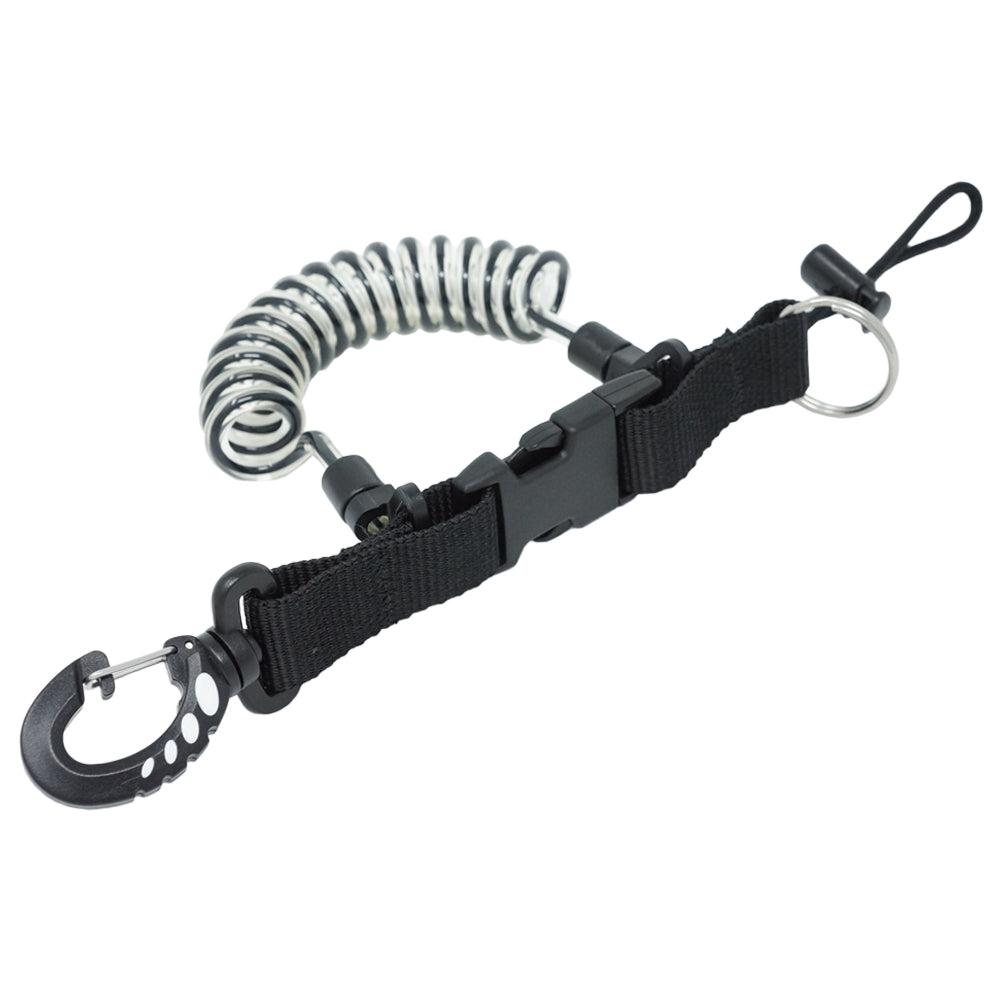

DiveCatalog Quick Release Coil Lanyard with Buckle - Scuba Essential
Snappy-coils will keep your underwater camera housings and dive light close. Can be attached to light and heavy accessories.
Features
Newly developed software enables compatibility with existing and previous Sea&Sea optical converters. TTL shooting with the YS-D3MKII can now be enjoyed using the YS-D2 position on the S&S optical converter.
A newly designed circuit improves the accuracy of TTL light intensity with compact cameras and also provides greater compatibility with third-party Optical TTL converters.
The design of the light intensity adjustment dial and mode switch has been revised for better useability in all diving environments.
The difference can be easily recognized from the outside by the MKII label on the side of the unit and the new control knobs on the rear.
Specifications
[Guide Number (ISO 100/m) (land)] : 33, 28 (with Diffuser attached)
[Beam Angle] : 80°x105° (without Diffuser), 100°x110°(with Diffuser)
[Batteries] : 4xAA A: 6V Ni-MH: 4.8V
[Number of Flashes *1] : A: 140 Ni-MH: 220
[Recycle time (full) *2] : A: 3.5 sec. Ni-MH: 1.7 sec.
[Color temperature] : 5800K
[Color temperature w/diffuser] : 5500K
[Depth rating] : 100m / 330ft
[Dimensions (WxHxD)] : 92x111x147mm / 3.6 x 4.4 x 5.8 inches (excluding ball base)
[Weight] : 610g / 21.5oz (w/o batteries) (excluding ball base)
[Underwater weight] : Approx.-20g / -0.7oz (incl. batteries ball base)
[Others]
Exposure control: DS-TTL II, Slave TTL, Light level control dial (GN): 1 / 1.4 / 2 / 2.8 /4 / 5.6 /8 / 11 / 16 / 22 / 33 (11 steps)
DS-TTL II function
Slave function
Auto power OFF function 30min
Sync cord: 5-pin Sync cord/N, Fiber-Optic Cable
Over-pressure relief valve
LED target light (output is adjustable in 2 steps)
Audible charge signal
1 Number of flashes and recycle time depends on the battery brand, temperature and frequency of use.
Number of flashes and recycle time of Ni-MH batteries were tested on 2500 mAh batteries.
